CORALYNN-18 (pLIS)

Polarimetric L-band Imaging SAR

experiment Overview

PLIS can measure the surface backscatter at HH, HV, VH, and VV polarisations. The PLIS is composed of two “main” 2x2 patch array antennas inclined at an angle of 30° from the horizontal to either side of the aircraft to obtain push broom imagery over a cross track swath of +/- 45°. Both antennas are able to transmit and receive at V and H polarisations. The antenna’s two-way 6-dB beam width is 51°, and the antenna gain is 9 dBi ± 2 dB. In the cross-track direction, the antenna gain is within 2.5 dB of the maximum gain between 15° and 45°. PLIS has an output frequency of 1.245-1.275 GHz with a peak transmit power of 20 W.

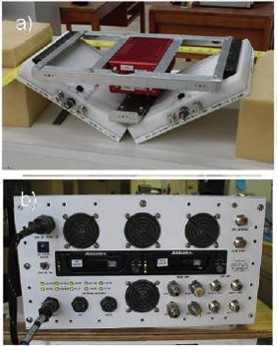

PLIS Equipment

Radio Fracuency at the bottom and Antenna at the top

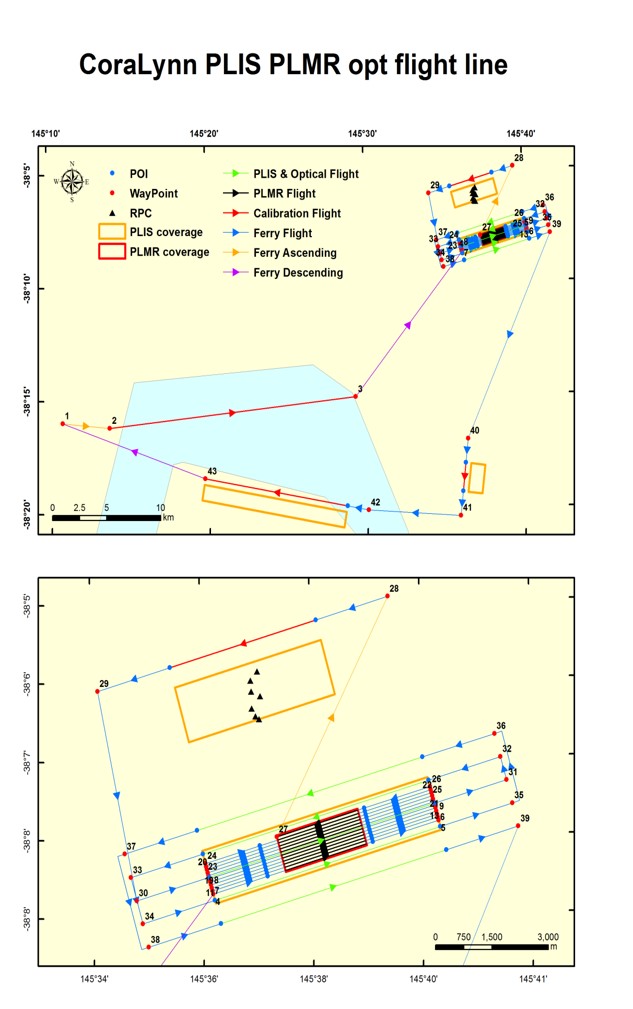

Flight lines - PLMR+PLIS+Optical

PLEASE NOTE: The following data sets should be acknowledged according to the following:

CORALYNN-17 & CORALYNN-18:

Ye, N., Wu, X., Walker, J. P., Boopathi, N., Zhu, L., Shen, X., Jackson, T. J., Kerr, Y., Kim, E., McGrath, A. & Yeo, I. Y., PopStefanija, I., 1 Mar 2019, 2019 URSI Asia-Pacific Radio Science Conference, AP-RASC 2019. Airborne P-band passive microwave soil moisture remote sensing: preliminary results. IEEE, Institute of Electrical and Electronics Engineers, 8738311. (2019 URSI Asia-Pacific Radio Science Conference, AP-RASC 2019).
