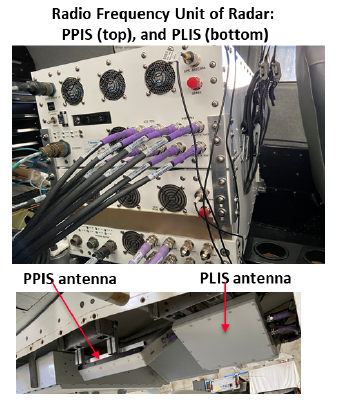

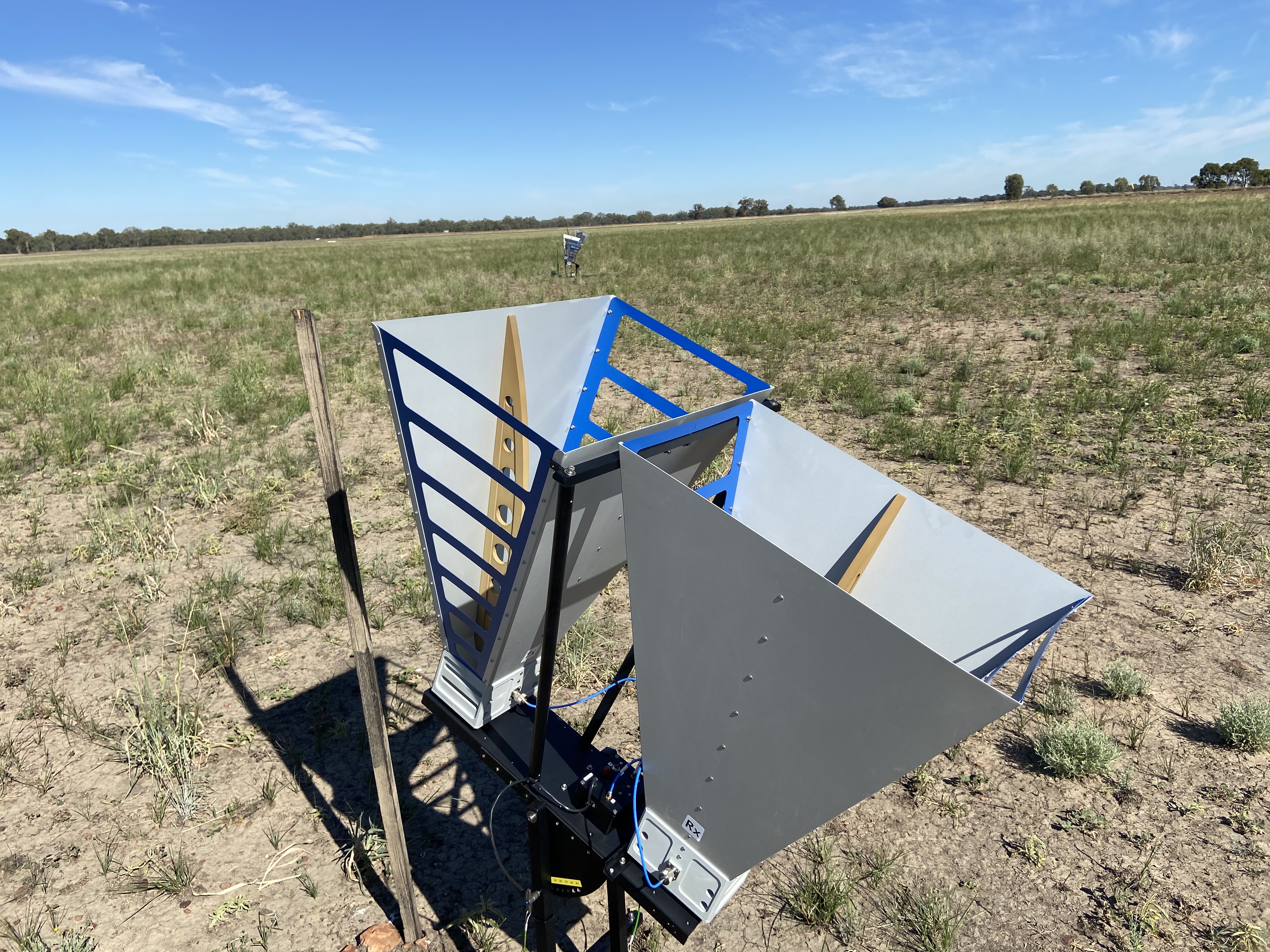

PLIS can measure the surface backscatter at HH, HV, VH, and VV polarisations. The PLIS is composed of two “main” 2x2 patch array antennas inclined at an angle of 30° from the horizontal to either side of the aircraft to obtain push broom imagery over a cross track swath of +/- 45°. Both antennas are able to transmit and receive at V and H polarisations. The antenna’s two-way 6-dB beam width is 51°, and the antenna gain is 9 dBi ± 2 dB. In the cross-track direction, the antenna gain is within 2.5 dB of the maximum gain between 15° and 45°. PLIS has an output frequency of 1.245-1.275 GHz with a peak transmit power of 20 W. At the start and end of PRISM-21, PLIS is calibrated using three Polarimetric Active Radar Calibrators (PARCs) located close to the airport. During each flight, PLIS is also calibrated using five Passive Radar Calibrators (PRCs) and a forest site within the study area.
